Tricon Shipping Container

Tricon shipping container from Container Family factory is a versatile and modular container that is widely used. Usually, three separate compartments are combined with special locks to form a 20-foot container. Container Family will offer professional customization services, providing an ideal solution for your transportation business.

Send Inquiry

Product Description

As the leading manufacturer in special containers industry, Container Family has provided high-quality tricon shipping container for multifunctional transportation.It is composed of three separate compartments. This three-compartment structure offers the advantage of independent loading, is convenient for shipping and storage, and is suitable for goods transportation and storage.Upon arrival at the destination, it can be disassembled into three containers and transported for short distances/stored separately.

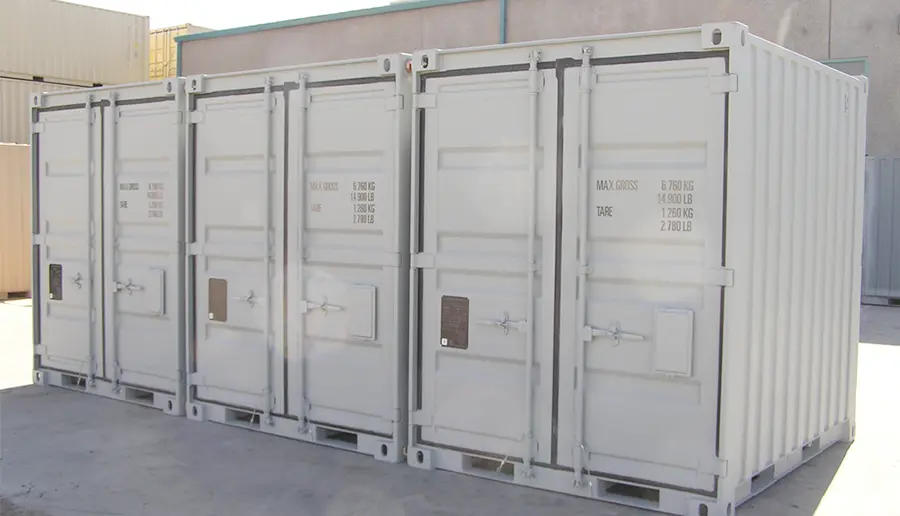

Tricon Shipping Container

Core Advantages of the ISO Tricon Containers

①ISO Standard

3 units combine into 20ft standard container,compatible with standard containers spreaders.Comply with CSC brand,can be directly used for maritime, railway, and road lifting, stacking and transportation.Each unit can be used for storage on site.

②Durable

Constructed from Corten steel material with strong corrosion-resistant property,can withstand harsh outdoor environment.

③Quick Loading

Double rear doors,after combining the single container can still open and close the door and load and unload goods, greatly improving transport efficiency.Each unit is equipped with forklift pockets for easy handling.

④Free Combination

Containers can be freely combined and disassembled, and can withstand a maximum of seven layers of stacking.

⑤Application

The container is derived from the military logistics plan. The three independent compartments are combined through a special rotating lock and can be flexibly disassembled. It is widely used in mines, remote areas, oil and gas extraction, disaster relief emergencies, military logistics, and outdoor storage, etc.

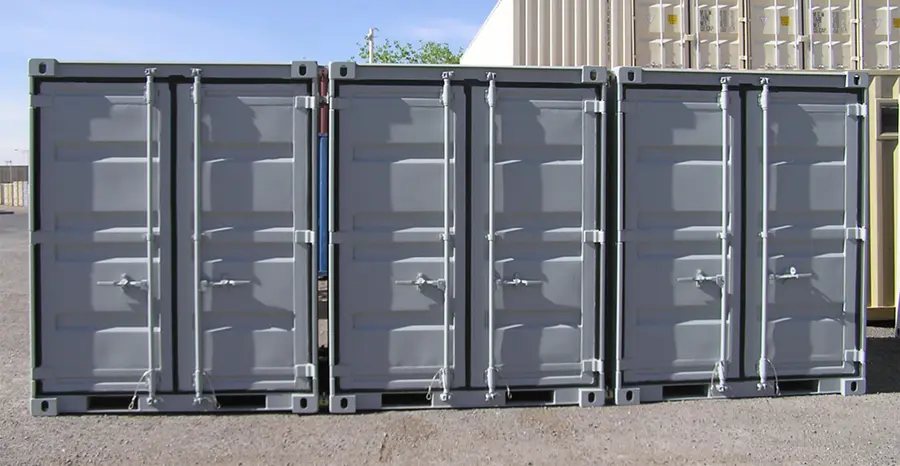

Tricon Shipping Container

The Identity Card of the Tricon:

Item
Parameter
Type
Tricon Shipping Container
Material
Corten Steel
External Size(mm)
1968(L) x 2438(W) x 2438(H)
Internal Size(mm)
1882(L) x 2288(W) x 2185(H)
Container Size
20ft
Each Container Size
6ft
Capacity
9.7m³
Tare Weight
1180kg
Max Gross Weight
6760kg
Payload
5580kg
Stackability
At most 7 layers

Why Choose Our Military Tricon Container?

1. Factory direct supply,stable lead time and low MOQ,competitive factory price with OEM & ODM customization service;

2. Offer CSC certification,comply with global intermal shipping;Professional after-sale service,including installation instruction,component replacement, and return/exchange procedures, etc.

3. QC team will arrange strict quality inspection before delivery,including structural tests and watertightness tests, etc;

4. Quick delivery.We also have our own freight forwarding company,can arrange delivery to all over the world in time.

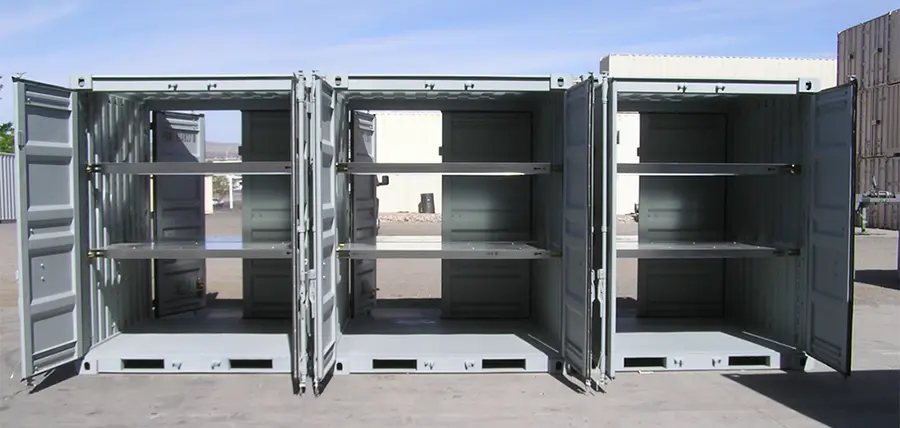

Tricon Shipping Container

The 20ft tricon shipping container is a good choice for military and oilfield storage,besides,we also provide duocon containers and quadcon containers.Container Family is located in Qingdao city,has more than 10 years of experience in this industry. Send us your requirements including quantity,custom modifications,usage scenario and destination port.Our sale team will reply with specific quotation within 24hours!
