Z-type Foldable Container

Container Family is a good choice if you want to get a high-quality Z-type foldable container,send your inquiry to us and our sale team will send the quotation and customer cases to you.

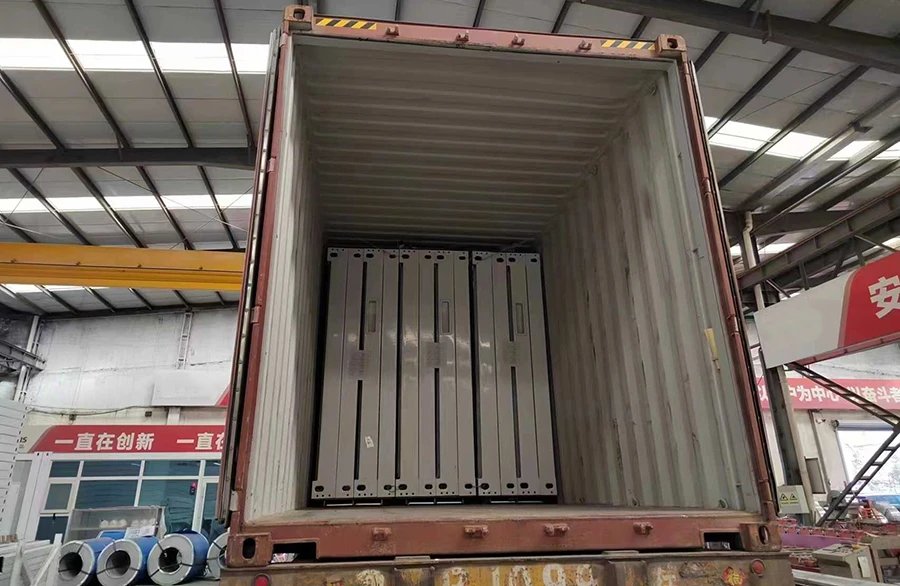

Compared with the X-type foldable container,the “Z” style integrates a sliding-folding system into the flat pack container structure. The core function is to optimize the installation process and reduce on-site work.After being folded, a 40-foot shipping container can accommodate 8 to 10 sets of Z-type folding containers.

The Structure Principle of the “Z” Style Folding Container:

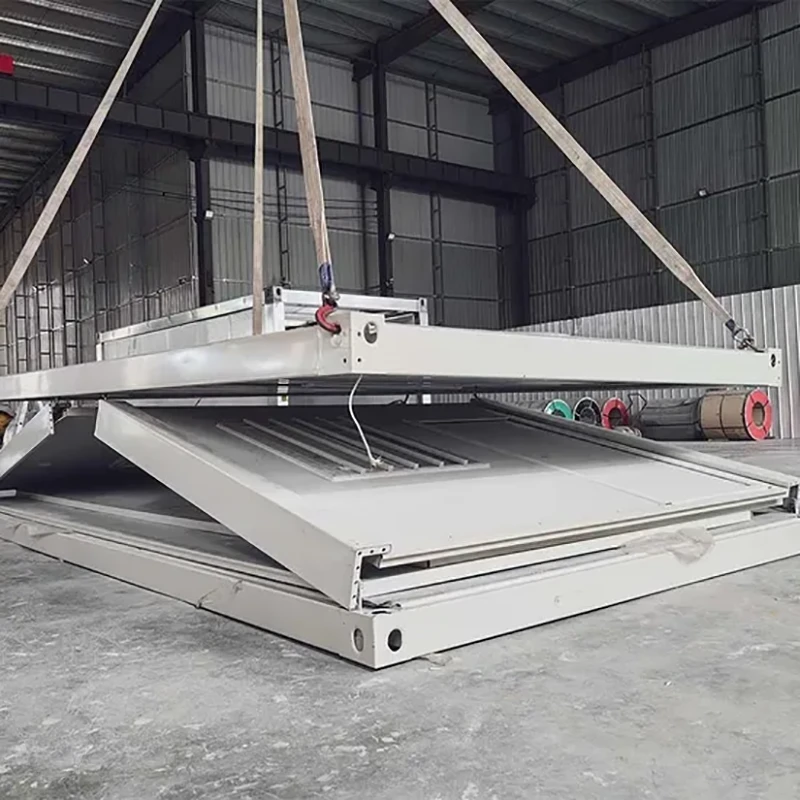

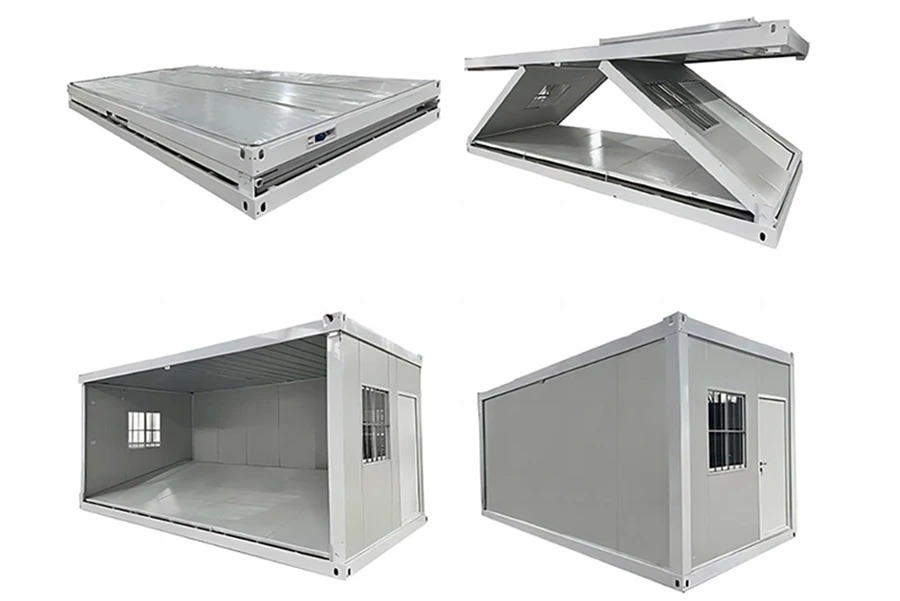

The top and bottom of the container are formed as a single piece. The side panels are folded in a Z-shape by rotating hinges at the bottom. After folding, the entire structure is compressed into a flat thin plate.

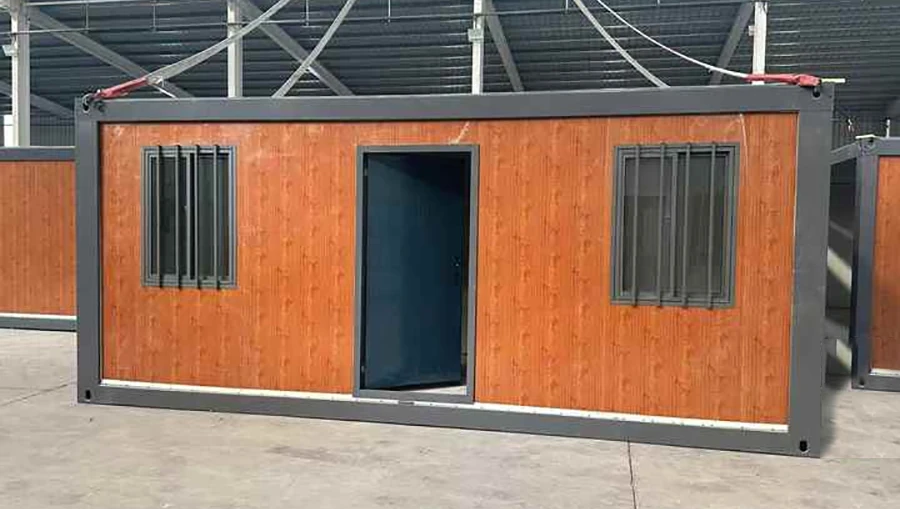

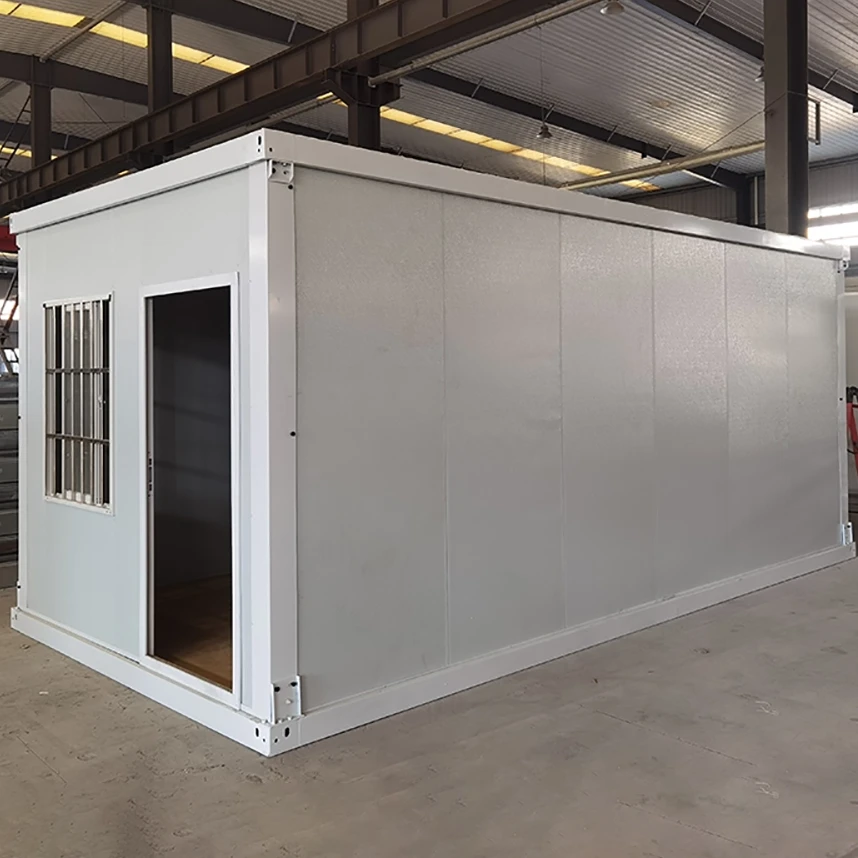

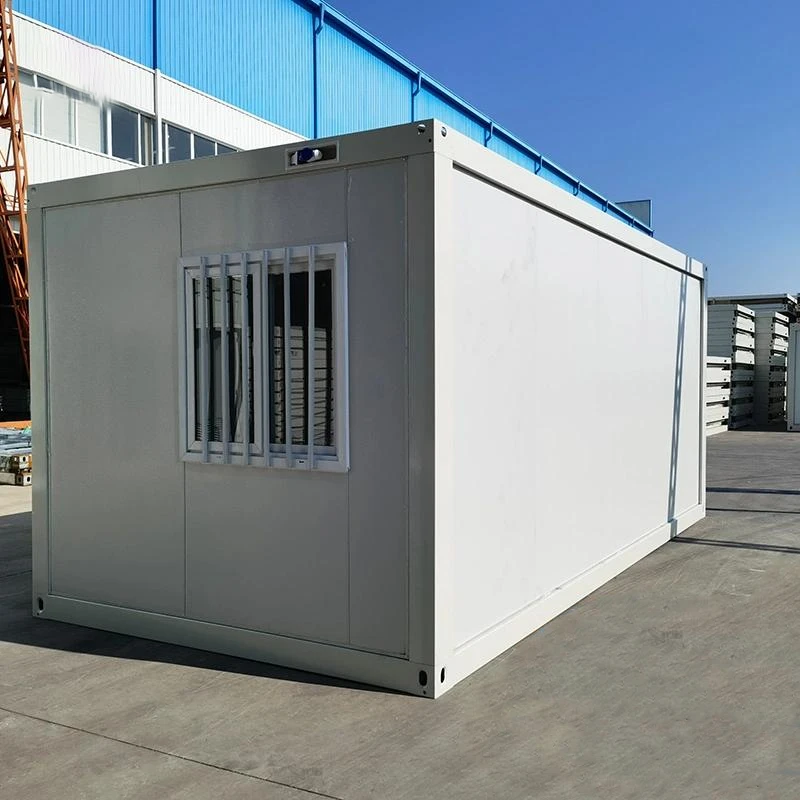

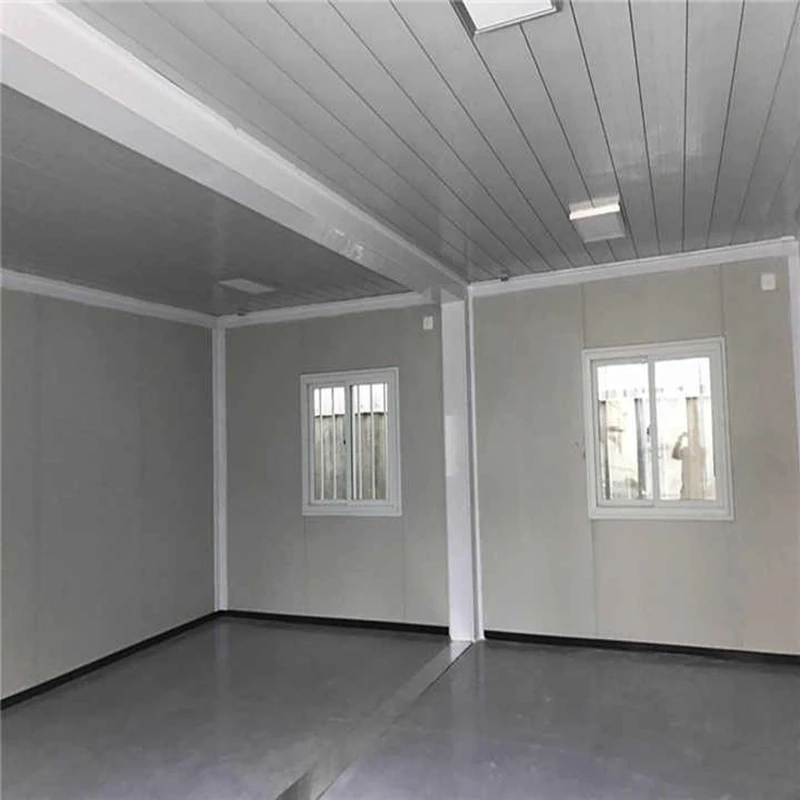

Expansion:5800×2500×2530mm;Independent room, equipped with doors, windows,electrical system and insulation layer.

Folding:5800×2500×570mm,reduce the transportation volume significantly.

Connection:U-shaped rotating pivot+thickened galvanized hinge,with built-in column support,resulting in greater overall rigidity.

Side Panel:50/75/100mm Rockwool / Glass Fiber Insulation Color Steel Plate

What Are the Advantages of the Special Foldable Container?

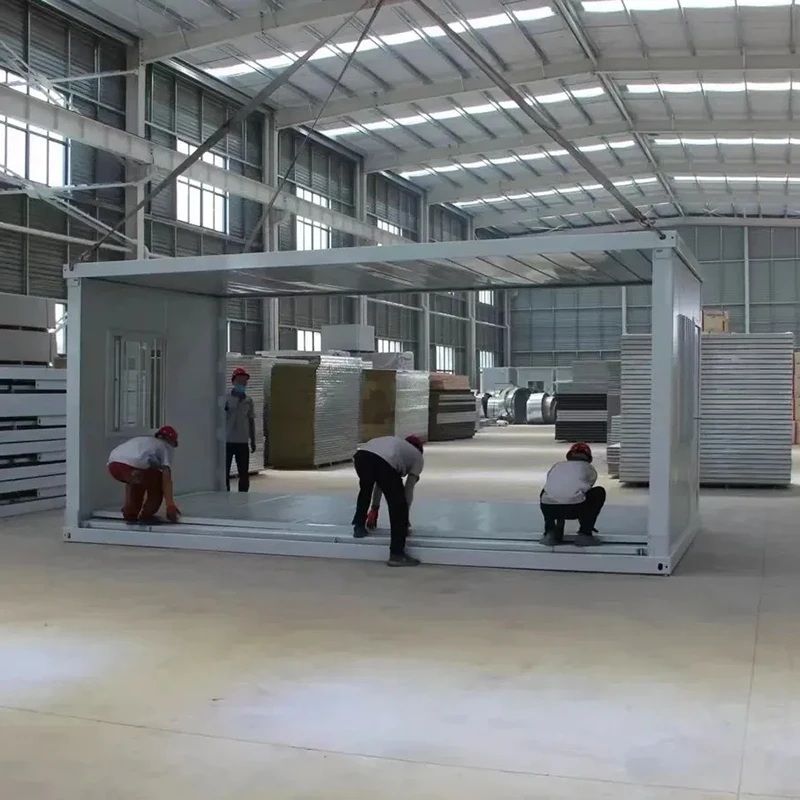

1. Quick Installation.The Z-type foldable container leaves the factory in a fully folded state and can be quickly and undamaged unfolded upon arrival at the site.The door,window and electrics have been pre-installed by factory,it can be installed in 20minutes,reducing on-site labor time by over 75% compared to traditional flat pack containers.

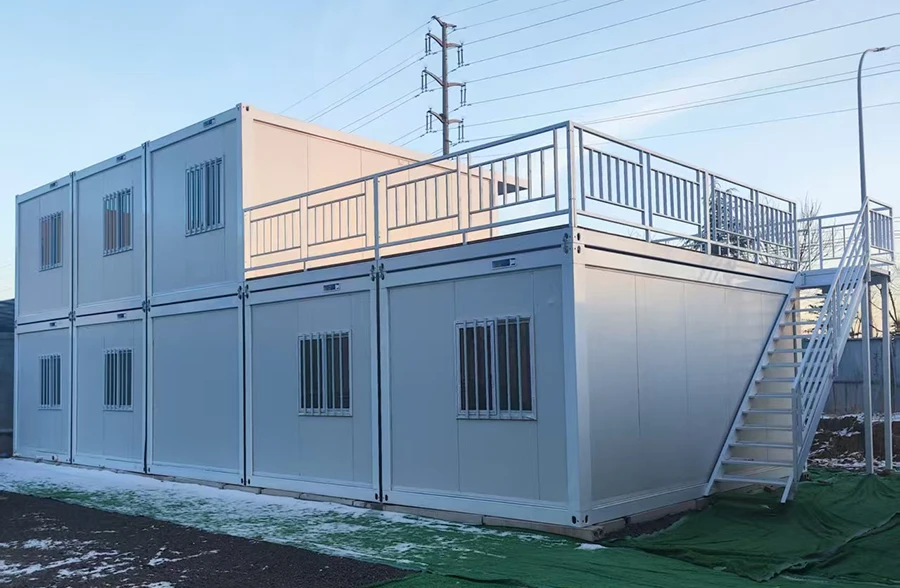

2. 3-Layer Stacked Design.Thickened galvanized Q235 steel frame with reinforced Z-type rotating hinges,the whole structure supports safe stacking up to 3 floors to form dormitory or large meeting room.

3. Attractive and Durable.The container body has no middle crease(different from “X” style) and the overall surface is matte paint; Waterproof butyl tape and roof insulation, which makes it resistant to water leakage. It is suitable for use worldwide and perfectly fits tropical rainforests, desert environments or cold regions in Eastern Europe.

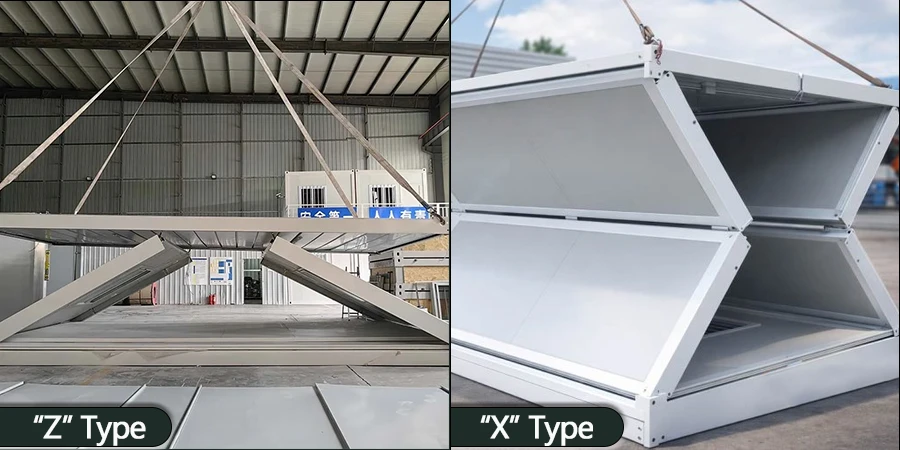

Z-type Foldable Container vs X-type Foldable Container

Container Family is professional special containers factory with full export certification,we can provide competitive price without middle markup;for the Z-type foldable container,we will provide flexible MOQ and discount for bulk orders;Customization service and after-sale service are available,you can change the size/external coating/printed logo...,we also supply detailed loading diagram and installation guidance.Click it to contact us now!
