Coil Container

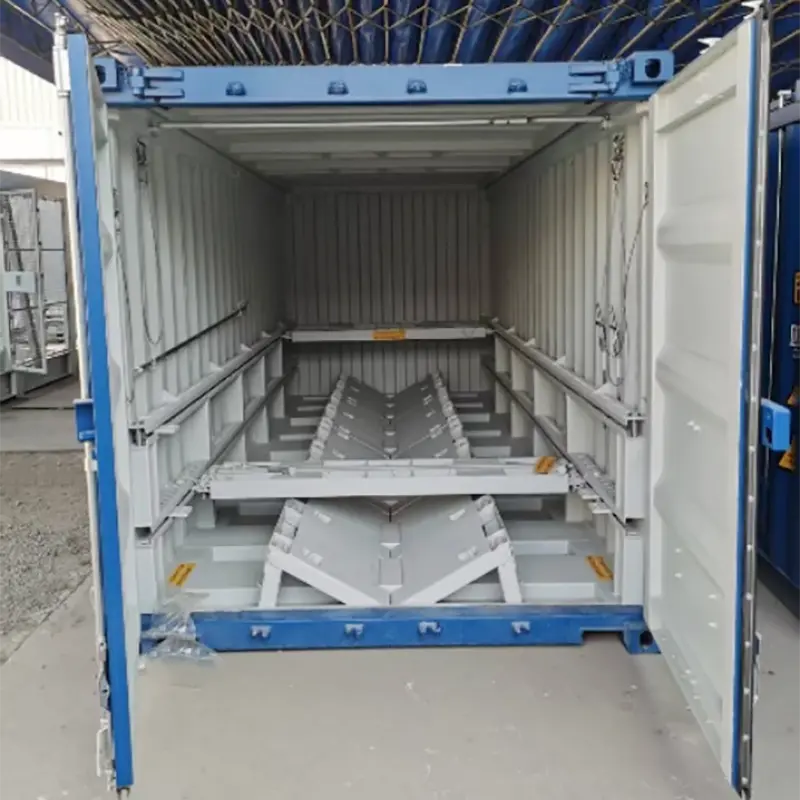

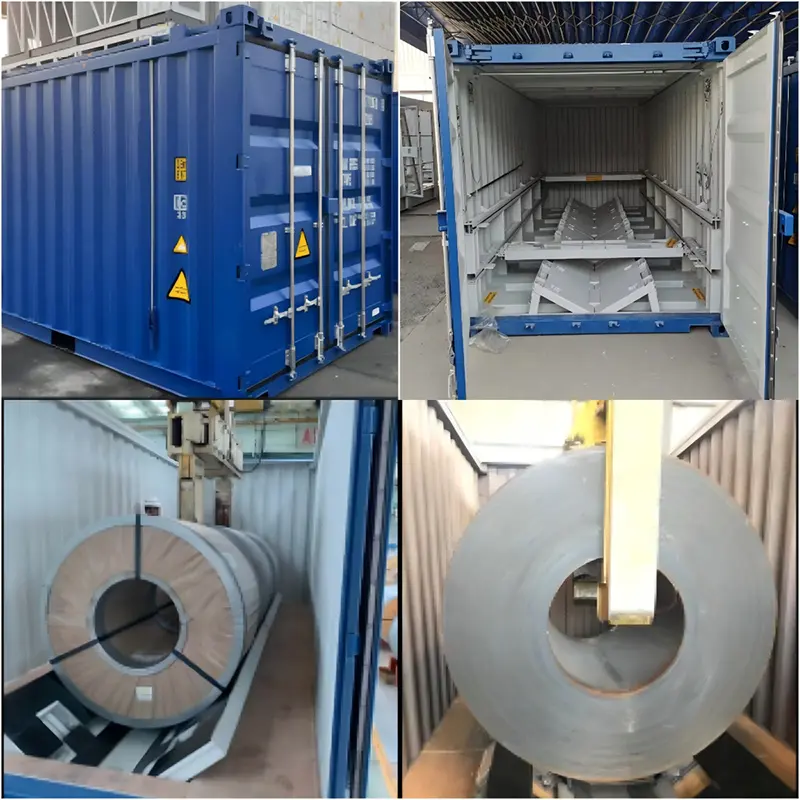

Container Family new launched durable coil container is especially designed for metal coils.In traditional transportation processes, heavy steel coils may penetrate the base plate due to concentrated load, and rolling may cause impacts and wear on the box. Compared with standard shipping containers, this type of container is equipped with a collapsible V-shaped saddle seat inside, which evenly distributes the weight of the goods onto the main beam, protecting the container. In addition, the saddle is equipped with anti-slip rubber pads, which further prevent any displacement that may occur during transportation due to bumps.

Core Advantages of the Coiltainers

Safe Anti-rolling Design

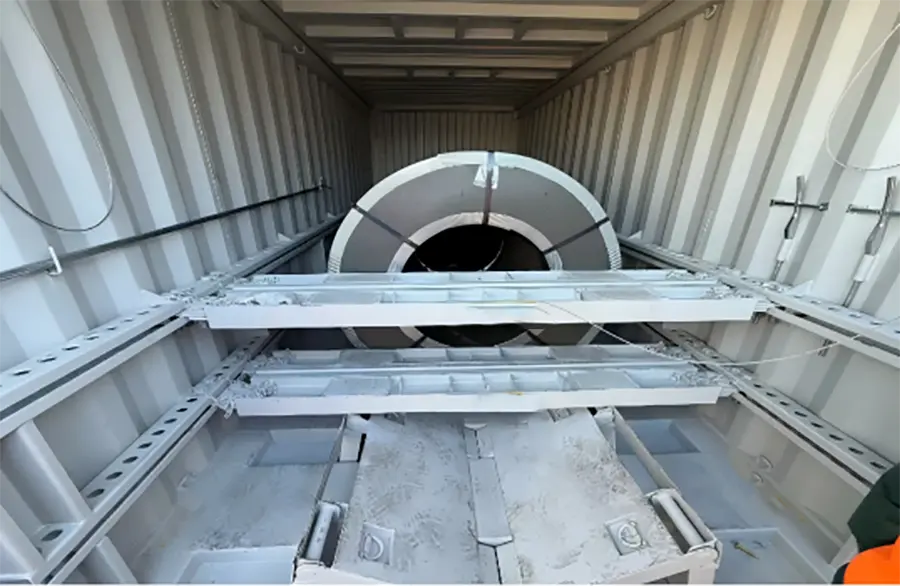

The built-in anti-slip V-shaped saddle can firmly hold the steel coil, preventing it from sliding during transportation, thereby reducing the risk of cargo collision and wear on the container.

Multifunction

The saddle can be folded fully to form a standard 20ft shipping container.You can choose to transport the steel coils during the outbound journey, and transport the plates, equipment and other miscellaneous goods during the return journey. This way, you can avoid empty containers and reduce logistics costs,improve asset utilization rate.

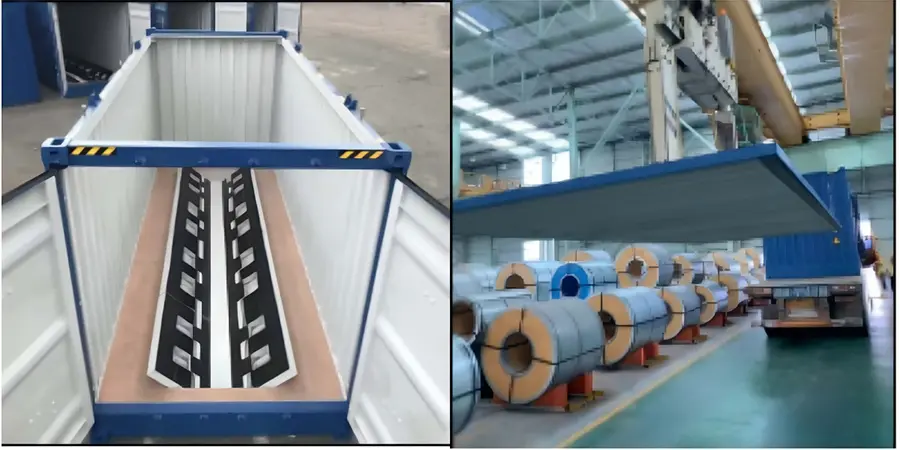

Open Top Design

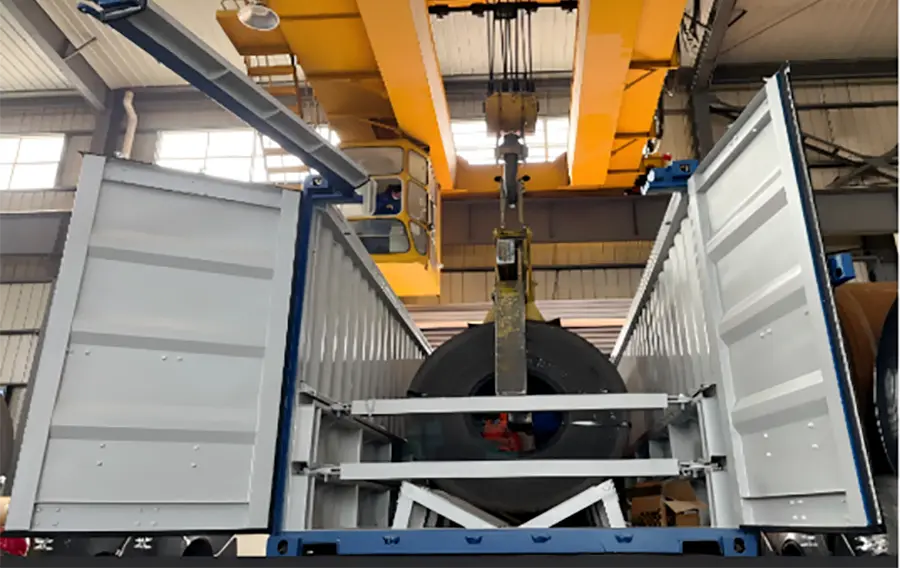

The hard open top with swing door header allows you to load the coils from top easily,save time and energy.

Product Specification

Other Types of Coil Containers Recommendation

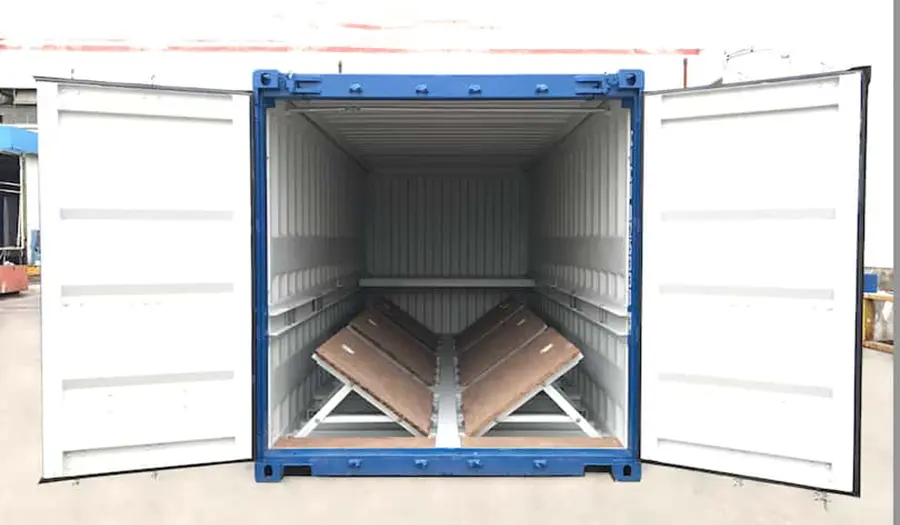

①Hard top open container with fixed saddle:

This container also features an open-top design and a removed door header, making it easy for cranes to load cargo from the top.But the saddle is fixed, if it is used to transport products of other types, it will significantly reduce the space utilization rate and increase the transportation costs.Size:20’*8’*8”6’.

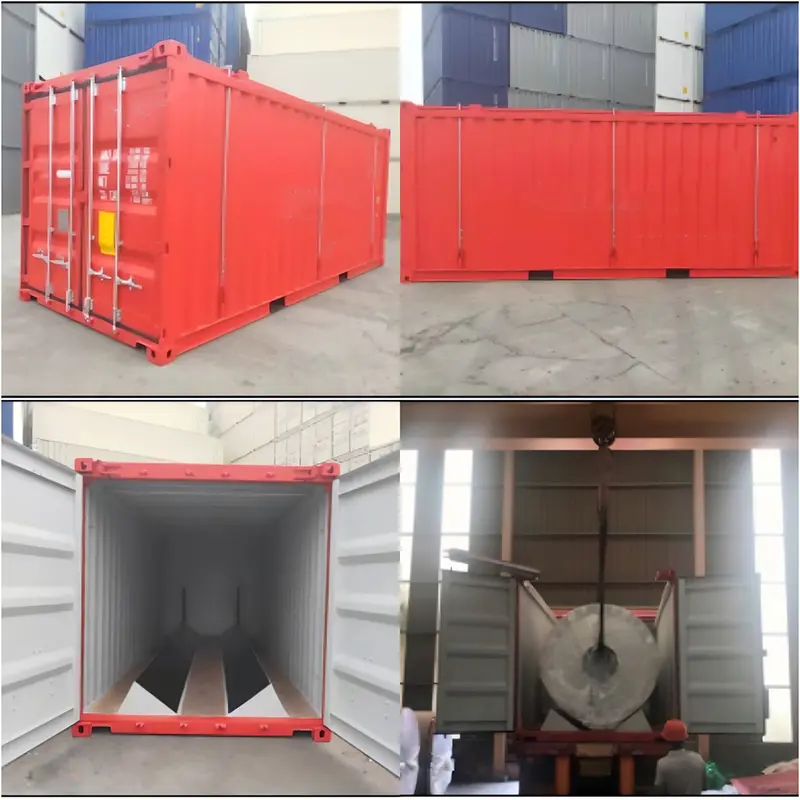

②20HQ container for steel coils with collapsible cradle:

Size:20’*8’*9”6’.The cradle can be opened easily to support coil and put down to transport general dry cargo on the return way.And its payload can reach about 29.2 tons.The top panel and rear door header can be customized.

The coil container is made of Corten weather-resistant steel, which has excellent waterproof and corrosion resistance properties. It is suitable for long-distance maritime transportation over a period of time and have a service life of about 15 years. Standard end doors or open tops are available as options. The latter is more convenient as it allows the crane to directly lift the steel coils from above, resulting in higher loading and unloading efficiency. In addition, we will conduct rigorous load tests and quality inspections before the products are manufactured, and provide the CSC certificate to meet the requirements of international shipping. Whether it's a logistics freight forwarder, a container leasing company, or a steel coil manufacturing enterprise, or even the end customers, this type of container is your ideal choice.

Containers Family is dedicated to meeting the various container needs of consumers in special containers industry, offering customized services and highly competitive factory prices. Please feel free to inquire for quotations! Our factory is located in Qingdao, Shandong Province. We also welcome you to come and have a visit!
