20Ft Half Height Open Top Container

Container Family is a comprehensive, high-tech manufacturing enterprise based in China that integrates R&D, custom design, processing and production, international trade, and ancillary services. As a legitimate manufacturer, professional supplier, and robust factory in China, we have long specialized in the R&D and manufacturing of various types of specialized containers.

The 20Ft Half Height Open Top Container is a specialized cargo unit specifically developed to address the challenges associated with transporting oversized cargo and navigating roadways with height restrictions. Unlike standard open-top containers, this unit features a significantly reduced overall height; while maintaining full cargo-carrying capacity, it is perfectly adapted for use on routes with height limitations. It effectively resolves the practical pain points involved in the cross-regional transit of large, irregularly shaped cargo, providing clients in the engineering, energy, and heavy industry sectors with a stable and reliable platform for heavy-duty transport.

Product Structure

1. This 20Ft Half Height Open Top Container is a piece of customized, specialized transport equipment. Its overall height is approximately 40% lower than that of a standard open-top container, yet it maintains an internal clearance height of 1.9 meters. This design strikes an optimal balance between internal space utilization and ease of on-site loading and unloading operations; it avoids increasing hoisting difficulty due to excessive height, while ensuring sufficient internal space to accommodate cargo placement without obstruction.

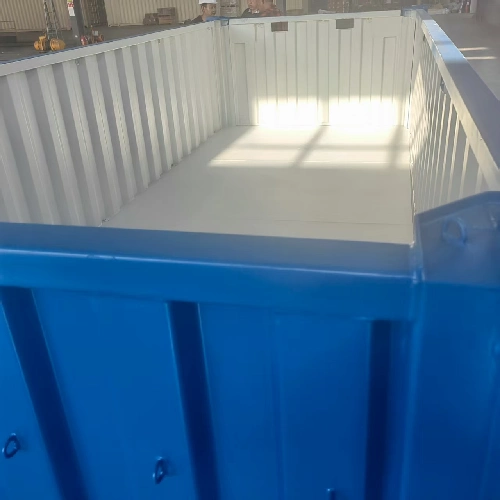

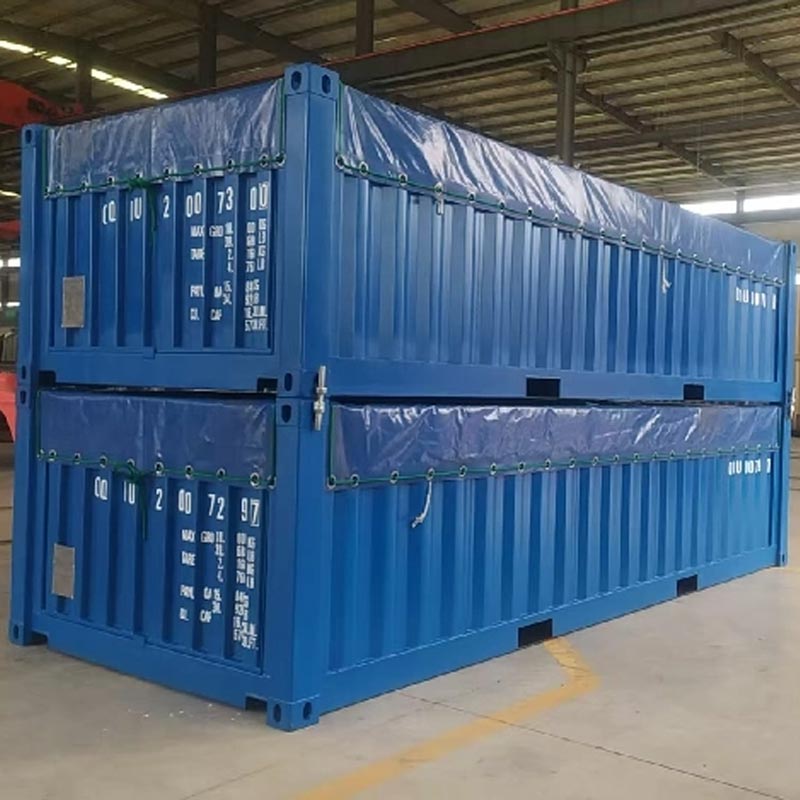

2. The container features a robust, fully welded all-steel frame structure. Its top is designed to be completely open, allowing for direct overhead hoisting and loading of cargo during daily operations. Additionally, it is equipped with a specialized waterproof and rain-resistant tarpaulin. This cover allows the container to be fully enclosed during outdoor storage or long-distance transit, effectively blocking the ingress of rain and dust to ensure the cargo inside remains well-protected against adverse weather conditions.

3. The container's side walls are fitted with fixed lashing rings, while the floor is lined with anti-slip, wear-resistant plating. Once loaded, cargo remains stable and is resistant to shifting, sliding, or tilting. This structural design inherently minimizes the risk of collision damage to the cargo during transit, making the container ideally suited for the stable loading of various heavy and irregularly shaped goods.

Technical Specifications

Suitable Cargo Types

1. Large-scale Engineering Equipment

This category includes heavy machinery that is large in volume and irregular in shape—such as small excavators, engineering loaders, and road construction equipment. These items can be loaded and transported in their entirety without the need for disassembly or dismantling.

2. Elongated Building Materials

For long-form cargo—such as various large-diameter transport pipes, municipal water supply lines, and industrial structural steel profiles—the container's fully open-top design allows for flexible vertical and horizontal positioning during loading.

3. Architectural Curtain Walls and Decorative Materials

Fragile and oversized building materials—including full-panel glass curtain walls, large stone slabs, and prefabricated construction components—can be securely and stably placed inside the container, utilizing its protective structural design to minimize transit damage.

Suitable Application Industries

1. Construction Engineering

Meets the demand for inter-site relocation and transport of construction equipment and infrastructure materials. It is ideally suited for the material transfer requirements of various engineering projects, including urban and rural infrastructure development, road construction, and building development.

2. Energy Development

The 20Ft Half Height Open Top Container is widely applicable for the long-distance transport of energy-related equipment—such as wind power components, photovoltaic system modules, and small-scale oilfield machinery—effectively meeting the logistical needs of outdoor operations within the energy sector.

3. Municipal Services

Cargo such as materials for urban pipeline construction, road maintenance equipment, and components for municipal public facilities can all be efficiently transported using this container for both direct-point delivery and long-distance relocation.

4. Heavy Machinery Manufacturing

For factory-finished heavy industrial components, large machine tool parts, and semi-finished complete processing systems, the container's heavy-duty load-bearing capacity facilitates efficient factory dispatch and delivery to remote locations.

Suitable Transport and Transit Scenarios

1. Roadways with Height Restrictions: Specifically designed for scenarios where standard high-cube containers face transit limitations—such as urban inner-ring roads with height limits or rural routes with low overhead clearance—this half-height container allows for smooth passage, thereby eliminating the additional time and cost associated with detours and rerouting.

2. Low-Clearance Passages (Tunnels, Railway Culverts, etc.): Unlike standard open-top containers—which frequently encounter transit restrictions in such environments—this half-height container can pass smoothly through various low-clearance structures, effectively breaking down logistical barriers for both short-haul and long-haul transportation.

3. As a mainstream mode of road-rail intermodal transport, the container features a design that complies with both railway freight loading specifications and road transport licensing requirements. This allows for seamless transitions between road and rail modes, enabling integrated multimodal transport and significantly enhancing overall logistics turnover efficiency.

Core Practical Advantages

1. Adaptability for Oversized and Irregular Cargo: The container features a fully open-top design, allowing for the rapid hoisting and loading of heavy, oversized cargo using cranes. This eliminates the need for strenuous manual handling throughout the process, drastically simplifying loading and unloading procedures, boosting overall operational efficiency, and reducing on-site labor requirements.

2. Enhanced Clearance Capability via Low-Profile Design: Leveraging a lowered-height design, the container overcomes the height restrictions typical of standard containers. It can navigate and transport cargo normally through low-clearance routes and restricted-access sections, offering a wider range of viable transport routes and remaining unconstrained by specific geographical or road conditions.

3. Superior Transport Safety via Integrated All-Steel Structure: Constructed with a robust, fully welded steel frame—complemented by anti-slip flooring and side-wall securing mechanisms—the container offers exceptional stability once loaded. During long-distance transit over rough terrain or during transshipment, it effectively prevents issues such as container deformation or cargo shifting, thereby comprehensively safeguarding the safety and integrity of the cargo throughout the entire journey.

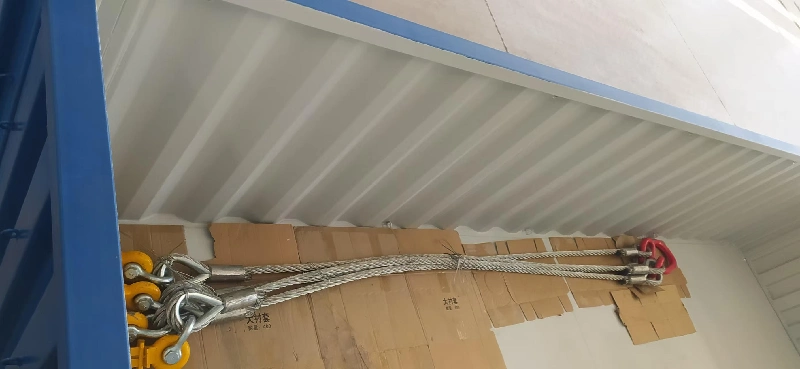

4. Versatility and Flexibility: Beyond its fundamental cargo transport capabilities, the 20ft Half-Height Open-Top Container can be customized with optional hoisting-assist accessories to meet specific client operational needs. These additions further streamline overhead lifting operations, making the container adaptable to a wide variety of on-site working environments and ensuring it effectively meets the diverse and differentiated requirements of various clients.

Manufacturing and Quality Control Capabilities

1. Production Process

The facility utilizes a complete, automated container manufacturing line—covering every stage from raw steel plate cutting, precision bending, and seamless welding, to anti-corrosion treatment, weather-resistant exterior painting, and final assembly. The entire process is subject to rigorous, stage-by-stage quality control, ensuring that every production detail is meticulously monitored to eliminate any manufacturing defects.

2. Quality Inspection

Every 20ft Half-Height Open-Top Container leaving our facility undergoes a comprehensive series of practical tests—including load-bearing pressure tests, waterproofing and sealing tests, structural compression tests, and transit compatibility checks. This rigorous process ensures that the container body meets load-bearing standards, remains completely watertight, and possesses structural stability, thereby fully complying with international ISO standards and domestic and international freight transport regulations.

3. Customization and Optimization

In addition to standard-specification containers, we offer customization and optimization services based on local transport regulations, specific cargo loading characteristics, and varying operational environments. We can fine-tune elements such as the tarp material, the quantity of fastening accessories, and internal reinforcement structures to create bespoke half-height open-top containers that are perfectly tailored to the client's actual operational scenarios.

Key Operational Guidelines for Daily Use

1. Cargo Loading Phase

Prioritize placing heavy cargo in the center of the container to ensure an even distribution of the overall load; this prevents the container from tilting due to uneven weight distribution. For long or linear cargo items, ensure they are securely bundled and fastened, utilizing the side-wall lashing rings to tighten and anchor them firmly in place.

2. Top Protection Phase

Once cargo loading is complete, immediately deploy the accompanying waterproof tarp. Ensure the edges of the tarp are tightly secured against the container's rim to prevent dislodgment during windy weather or water seepage during rainfall.

3. Lifting and Hoisting Phase

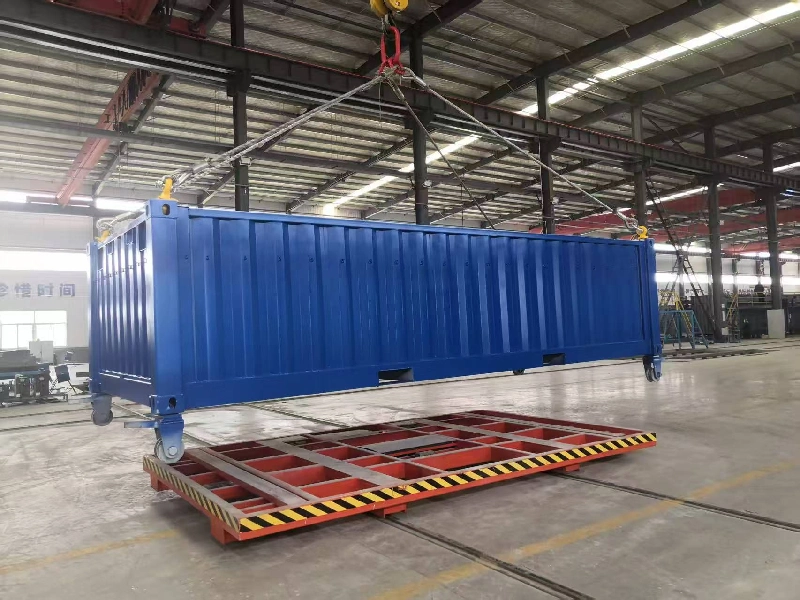

When using a crane to hoist the container or its contents, apply force exclusively at the container's designated standard lifting points. Strictly avoid selecting arbitrary points for lifting, as this can result in excessive localized stress and lead to structural damage to the container.

4. Storage and Stacking Phase

When a 20Ft Half Height Open Top Container is to be left idle or stacked for an extended period, ensure it is placed on level, solid ground. Regularly clear out any debris or accumulated water from the container's interior, and periodically inspect the paintwork for signs of corrosion to maximize the container's overall service life.

One-Stop Collaborative Support Services

1. Initial Solution Consultation: Our team of professional sales and technical experts will analyze your cargo dimensions, weight, and intended transit routes. "Container Family" offers complimentary cargo loading plans and container selection recommendations, ensuring a precise match with the most suitable container product for your specific needs.

2. Mid-Stage Production and Delivery: Leveraging our company's ample production capacity, we meticulously plan production schedules to ensure that the manufacturing and final acceptance of finished goods are completed strictly within the agreed-upon timeframe. This guarantees that clients receive their shipments promptly, allowing for their immediate deployment into logistics and transport operations.

3. Post-Sale Support and Assurance: Following product delivery, we provide ongoing technical guidance for long-term usage. Should you encounter any issues during operation—such as loading challenges, component replacements, or structural adjustments—you can quickly connect with our team for prompt resolution. Container Family is committed to providing comprehensive support every step of the way, ensuring the smooth and efficient execution of your cargo transit operations.
