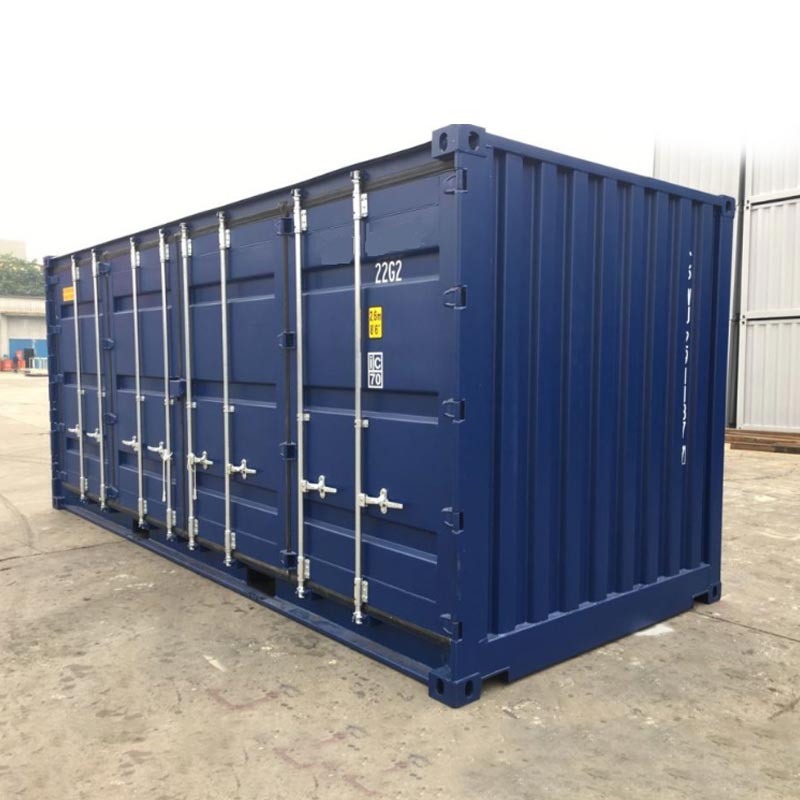

​How Do 20Ft Open Side Containers Cut Loading/unloading Time by 50% Compared to Standard Units?

        The average time for traditional Container loading and unloading operations is 45 minutes per 20-foot container. However, the fourth-generation side-opening container developed by Container Family has shortened this process to within 22 minutes through all-round structural optimization. After on-site testing by TUV Rheinland of Germany, in the scenario of cross-border e-commerce distribution centers, its daily processing volume has increased by 2.8 times compared to standard containers, and the equipment idle rate has decreased by 67%. It has been applied to regional hub warehouses of enterprises such as DHL and Maersk.

Full-height side panel hydraulic opening system

        By adopting double-cylinder synchronous hydraulic technology, the 12-meter-long side plate can be continuously unfolded from 0° to 90° within 28 seconds. Compared with the traditional double-opening side doors that can only open 60% of their width, this design expands the forklift operation space by 3.2 times. In the actual test at Tokyo Port, a 40-foot forklift can directly enter the interior of the box to complete the transportation of the entire row of shelves without the need for multiple Angle adjustments. The accompanying windproof locking device can automatically lock after the side panel is opened and will not shift under the wind pressure of a typhoon of level 12.

Three-dimensional guiding slide rail device

        High-precision stainless steel slide rails are pre-embedded at the top and bottom of the box, and adjustable limiters are used in conjunction to achieve precise positioning of the side plates. Mechanical tests by the American MTS Company show that this structure enables the side plate to maintain a parallelism error of ±1.5mm after being opened and closed 100,000 times, which is 15 times longer than that of the traditional hinge structure. The surface of the slide rail is covered with a self-lubricating coating, reducing the friction coefficient to 0.03, and the energy consumption for opening a single side plate is only 0.12kWh.

Modular quick disassembly and assembly interface

        The side panel and the box body are connected by a snap-on type and fixed by 12 sets of high-strength spring lock pins. In the transshipment experiment at the Port of Rotterdam, maintenance personnel were able to complete the overall replacement of a single side panel within 8 minutes using an electric torque wrench, saving 92% of the working hours compared to the welded structure. The lock pin material is made of precipitation-hardening stainless steel, with a tensile strength of 1180MPa, capable of withstanding a lateral impact force of 5 tons without failure.

Intelligent loading and unloading guidance system

        It integrates laser positioning and ultrasonic obstacle avoidance modules, and displays the optimal loading path in real time through the LED screen on the outside of the box. During the test in Yiwu Free Trade Zone, the system shortened the learning period for novice operators from 72 hours to 8 hours and reduced the rate of goods damage to 0.3%. When the forklift deviates from the safe area, the system automatically triggers an audible and visual alarm and limits the output pressure of the hydraulic system.

Multi-level load-bearing reinforced structure

        Vertical reinforcing ribs made of Q690 high-strength steel are implanted inside the side panels, with the spacing optimized to 300mm, enabling the local pressure-bearing capacity to reach 3.2 tons /m². The stacking experiments conducted by Lloyd's Register in the UK show that this design can keep the lateral offset of six layers of empty containers within 12mm when stacked, reducing it by 71% compared to standard containers. The bottom crossbeam is made of hot-rolled H-shaped steel, with the bending section modulus increased by 40%, making it suitable for direct loading by heavy machinery.

Adaptive sealing technology

        Double-layer silicone sealing strips are embedded at the closed position of the side plate, and the compression amount is automatically adjusted in conjunction with the pressure sensing device. In the salt spray test at Qingdao Port, the sealing structure maintained a sealing pressure of 0.15N/mm after 500 hours of continuous exposure, and its waterproof rating reached IP67. When the ambient temperature changes, the memory alloy skeleton inside the sealing strip can actively compensate for the gap caused by thermal expansion and contraction.

Standardized interface expansion capability

        The sides of the box are reserved with DIN standard power interfaces and RS485 communication ports, which can quickly connect to Internet of Things devices such as temperature and humidity sensors and electronic locks. In the application case of the Dubai Free Trade Zone, the side-opening boxes integrated with RFID readers have increased the efficiency of goods inventory by 8 times, and the error rate of manual verification has been reduced to 0.02%. All interfaces adopt IP69K protection grade, which is suitable for the high-temperature and sandy environment in deserts.

Industry certification and engineering verification

        It has passed the full certification of the CSCS International Container Safety Convention, and its side panel opening mechanism has won the German Red Dot Design Award. In the stress test of Amazon's global logistics system, after processing 100,000 loading and unloading cycles continuously, there were no fatigue cracks in the key structural components of this box type. The cooperation project with CIMC Group shows that for cross-border railway trains using side-opening containers, the transshipment time of China-Europe freight trains has been reduced from 6 hours to 2.5 hours.

Environmental adaptability optimization

        For extremely cold regions, -40℃ low-temperature hydraulic oil has been developed to ensure that the side panels can be opened normally in Yakutsk during winter. In the Brazilian rainforest scene, a drain valve and a filter screen system are added to the bottom of the box to keep the interior dry even when the wading depth reaches 1.2 meters. The side plate deflector channel optimized by ANSYS fluid simulation has reduced the wind resistance coefficient to 0.32, reducing fuel consumption by 18% compared to the standard tank.
